Embedding Visualization

This script demonstrates how to:

1. Load a trained autoencoder model

2. Run inference to compute embeddings (latent representations)

3. Visualize the embeddings using scanpy

4. Color the visualizations based on expansion status and tissue type

Imports and Setup

import sys
from pathlib import Path

import anndata as ad
import matplotlib  # noqa: F401
import numpy as np
import pandas as pd
import scanpy as sc
import seaborn as sns
import torch

# Set backend to inline for Jupyter notebooks
%matplotlib inline

# Configure scanpy to not show plots automatically
sc.settings.verbosity = 3  # verbosity level
sc.settings.set_figure_params(dpi=100, figsize=(8, 8), facecolor="white")

project_root = Path.cwd().parent.parent
print(f"Project root: {project_root}")
sys.path.insert(0, str(project_root))

# Import project modules
from scxpand.autoencoders.ae_models import load_ae_model
from scxpand.autoencoders.ae_modules import BaseAutoencoder
from scxpand.autoencoders.ae_params import AutoEncoderParams
from scxpand.data_util.data_format import load_data_format
from scxpand.data_util.data_splitter import get_patient_identifiers
from scxpand.data_util.dataloaders import create_eval_dataloader
from scxpand.data_util.dataset import CellsDataset
from scxpand.util.general_util import get_device, get_new_version_path, load_params

# Set up visualization style
sc.settings.set_figure_params(dpi=100, figsize=(8, 8))
sns.set_style("whitegrid")

# Get compute device
device = get_device()
print(f"Using device: {device}")

Project root: c:\Users\Ron\repos\scXpand
Using device: cuda

Configuration

# Data file for generating embeddings
DATA_PATH = (
    project_root / "data" / "scXpand_counts_with_expansion_for_model_08_12_2024.h5ad"
)

# Path to a trained autoencoder model
# Option 1: Use a local model (uncomment the line below)
# MODEL_PATH = project_root / "results" / "autoencoder"

# Option 2: Download a pre-trained model from the registry (uncomment the lines below)
from scxpand.pretrained.download_manager import download_model

MODEL_PATH = download_model("pan_cancer_autoencoder")

# To use only a subset of the data for evaluation, set SPLIT_PATH
# If SPLIT_PATH is None, the full dataset will be used
SPLIT_PATH = project_root / "results" / "optuna_studies" / "dev_patient_ids.csv"

# Inference parameters
batch_size = 16384  # or 1024 for smaller memory
# Folder to save embedding outputs
SAVE_PATH = get_new_version_path(project_root / "results" / "embeddings_visualization")

print(f"Model path: {MODEL_PATH}")
print(f"Data file: {DATA_PATH}")
print(f"Results will be saved to: {SAVE_PATH}")

SAVE_PATH.mkdir(parents=True, exist_ok=True)

2025-09-17 10:54:53 [info     ] Downloading registry model 'pan_cancer_autoencoder' to cache directory: c:\Users\Ron\repos\scXpand\docs\notebooks\.scxpand_cache [scxpand.pretrained.download_manager]
Model path: C:\Users\Ron\repos\scXpand\docs\notebooks\.scxpand_cache\f876361c9c71e3c48397566cb0567d10-1.unzip\autoencoder
Data file: c:\Users\Ron\repos\scXpand\data\scXpand_counts_with_expansion_for_model_08_12_2024.h5ad
Results will be saved to: c:\Users\Ron\repos\scXpand\results\embeddings_visualization_v_1

Read Data

# Load data in read mode
adata = ad.read_h5ad(DATA_PATH, backed="r")

Get Data Subset (Optional)

if SPLIT_PATH:
    # Load a specific subset of patients
    with open(SPLIT_PATH) as f:
        patient_ids = f.readlines()
    patient_ids = [line.strip() for line in patient_ids]
    patient_identifiers = get_patient_identifiers(obs_df=adata.obs)
    eval_row_inds = np.where(patient_identifiers.isin(patient_ids))[0]
else:
    eval_row_inds = np.arange(len(adata))

assert len(eval_row_inds) > 0, "No cells found for evaluation"
print(
    f"Using {len(eval_row_inds)} cells ({len(eval_row_inds) / len(adata) * 100:.2f}% of total)"
)

Using 331065 cells (20.84% of total)

Load Data Format and Model

# Load data format
data_format = load_data_format(MODEL_PATH / "data_format.json")

print("Data will be formatted as follows:")
print(f"{data_format.n_genes = }")
print(f"{data_format.gene_names[:3] = }")

2025-09-17 10:54:58 [info     ] Loaded data format from: C:\Users\Ron\repos\scXpand\docs\notebooks\.scxpand_cache\f876361c9c71e3c48397566cb0567d10-1.unzip\autoencoder\data_format.json [scxpand.data_util.data_format]
Data will be formatted as follows:
data_format.n_genes = 11950
data_format.gene_names[:3] = ['ENSG00000188976', 'ENSG00000187961', 'ENSG00000187583']

Load Model Parameters

# Load model parameters and initialize
params_dict = load_params(MODEL_PATH)
prm = AutoEncoderParams(**params_dict)

model = load_ae_model(model_path=MODEL_PATH, device=device)
model.eval()

print(f"Loaded Autoencoder model type: {prm.model_type}")
print(f"Latent dimension: {prm.latent_dim}")
print(f"Model architecture: {model.__class__.__name__}")

2025-09-17 10:54:58 [info     ] Loaded data format from: C:\Users\Ron\repos\scXpand\docs\notebooks\.scxpand_cache\f876361c9c71e3c48397566cb0567d10-1.unzip\autoencoder\data_format.json [scxpand.data_util.data_format]
2025-09-17 10:54:58 [info     ] Model input dimensions: genes=11950 [scxpand.autoencoders.ae_models]
2025-09-17 10:54:58 [info     ] Building fork model with latent_dim=32 [scxpand.autoencoders.ae_models]
2025-09-17 10:54:59 [info     ] Loading Autoencoder model from C:\Users\Ron\repos\scXpand\docs\notebooks\.scxpand_cache\f876361c9c71e3c48397566cb0567d10-1.unzip\autoencoder [scxpand.util.model_loading]
Loaded Autoencoder model type: fork
Latent dimension: 32
Model architecture: ForkAutoencoder

Create DataLoader

# Create dataset
eval_dataset = CellsDataset(
    data_format=data_format,
    row_inds=eval_row_inds,
    dataset_params=prm.get_dataset_params(),
    is_train=False,
    data_path=DATA_PATH,
    include_row_normalized_gene_counts=True,
)

# Create dataloader using helper function
eval_loader = create_eval_dataloader(
    dataset=eval_dataset, batch_size=batch_size, num_workers=0
)

2025-09-17 10:55:03 [info     ] Created eval data loader with batch size: 16384, num_workers: 0 [scxpand.data_util.dataloaders]

Generate Embeddings

def extract_embeddings(
    model: BaseAutoencoder,
    dataloader: torch.utils.data.DataLoader,
    device: torch.device,
) -> np.ndarray:
    """Extract embeddings from the model's encoder."""
    model.eval()
    embeddings = []

    with torch.no_grad():
        for i_batch, batch in enumerate(dataloader):
            if i_batch % 5 == 0:
                print(f"Processing batch {i_batch + 1} of {len(dataloader)}")

            # Get features
            x = batch["x"].to(device)

            # Forward pass through encoder to get embeddings
            latent_vec = model.encode(x)

            # If the model returns a tuple (like mean and variance in a VAE), just take the mean
            if isinstance(latent_vec, tuple):
                latent_vec = latent_vec[0]

            embeddings.append(latent_vec.cpu().numpy())

    return np.vstack(embeddings)


# Extract embeddings
embeddings = extract_embeddings(model=model, dataloader=eval_loader, device=device)

print(f"Generated embeddings shape: {embeddings.shape}")

Processing batch 1 of 21
Processing batch 6 of 21
Processing batch 11 of 21
Processing batch 16 of 21
Processing batch 21 of 21
Generated embeddings shape: (331065, 32)

Create AnnData Object with Embeddings

# Create a new AnnData object with embeddings

emb_adata = ad.AnnData(
    X=embeddings,
    obs=adata[eval_row_inds].obs,
    uns={"embedding_type": f"{prm.model_type}", "latent_dim": prm.latent_dim},
)

# Add metadata for coloring (optional if relevant metadata is available)
# emb_adata.obs["is_expanded"] = adata[eval_row_inds].obs["expansion"].map({"expanded": "True", "unexpanded": "False"})

# Save the embeddings AnnData object (optional)
# emb_adata.write_h5ad(SAVE_PATH / "embeddings.h5ad")
# print(f"Saved embeddings to {SAVE_PATH / 'embeddings.h5ad'}")

Visualize Embeddings with Scanpy

latent_dim = embeddings.shape[1]  # Get actual dimensionality of embeddings
print(f"Embedding dimension: {latent_dim}")

# Run PCA to reduce dimensionality before UMAP
n_pcs = min(
    emb_adata.shape[1] - 1, 40
)  # Use a maximum of 40 PCs, or fewer if fewer features are available
sc.tl.pca(emb_adata, n_comps=n_pcs)

# Use BBKNN for batch correction if 'sample' column exists in obs
sc.external.pp.bbknn(
    emb_adata,
    batch_key="sample",
    n_pcs=n_pcs,
)
# Run UMAP for 2D visualization
sc.tl.umap(emb_adata)

Embedding dimension: 32
computing PCA
    with n_comps=31
    finished (0:00:00)
computing batch balanced neighbors
WARNING: consider updating your call to make use of `computation`
	finished: added to `.uns['neighbors']`
    `.obsp['distances']`, distances for each pair of neighbors
    `.obsp['connectivities']`, weighted adjacency matrix (0:15:15)
computing UMAP
    finished: added
    'X_umap', UMAP coordinates (adata.obsm)
    'umap', UMAP parameters (adata.uns) (0:11:31)

Additional Visualizations

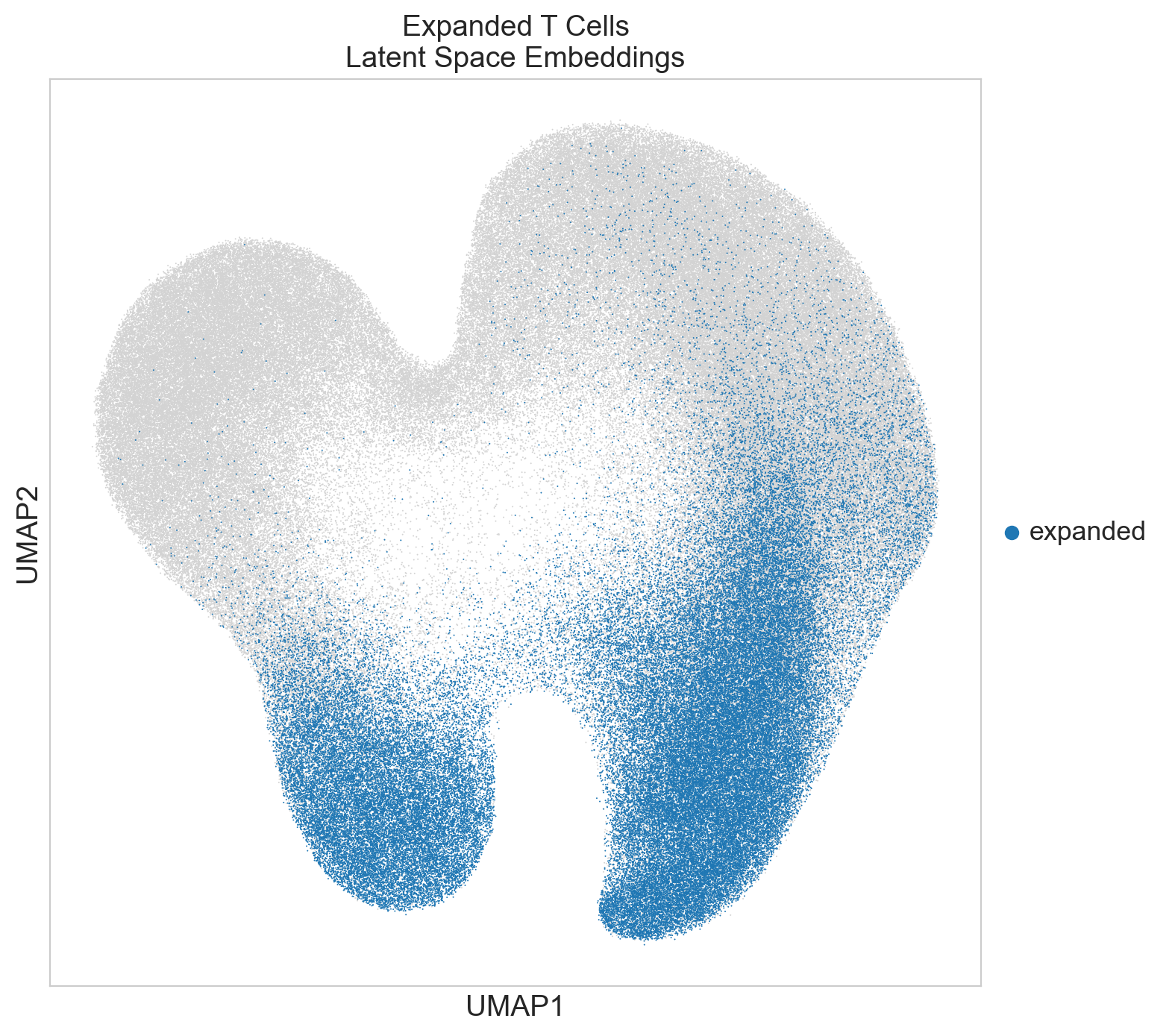

if "expansion" in emb_adata.obs:
    sc.pl.umap(
        emb_adata,
        color=["expansion"],
        title="Expanded T Cells\nLatent Space Embeddings",
        groups=["expanded"],
        na_in_legend=False,
        size=2,
    )

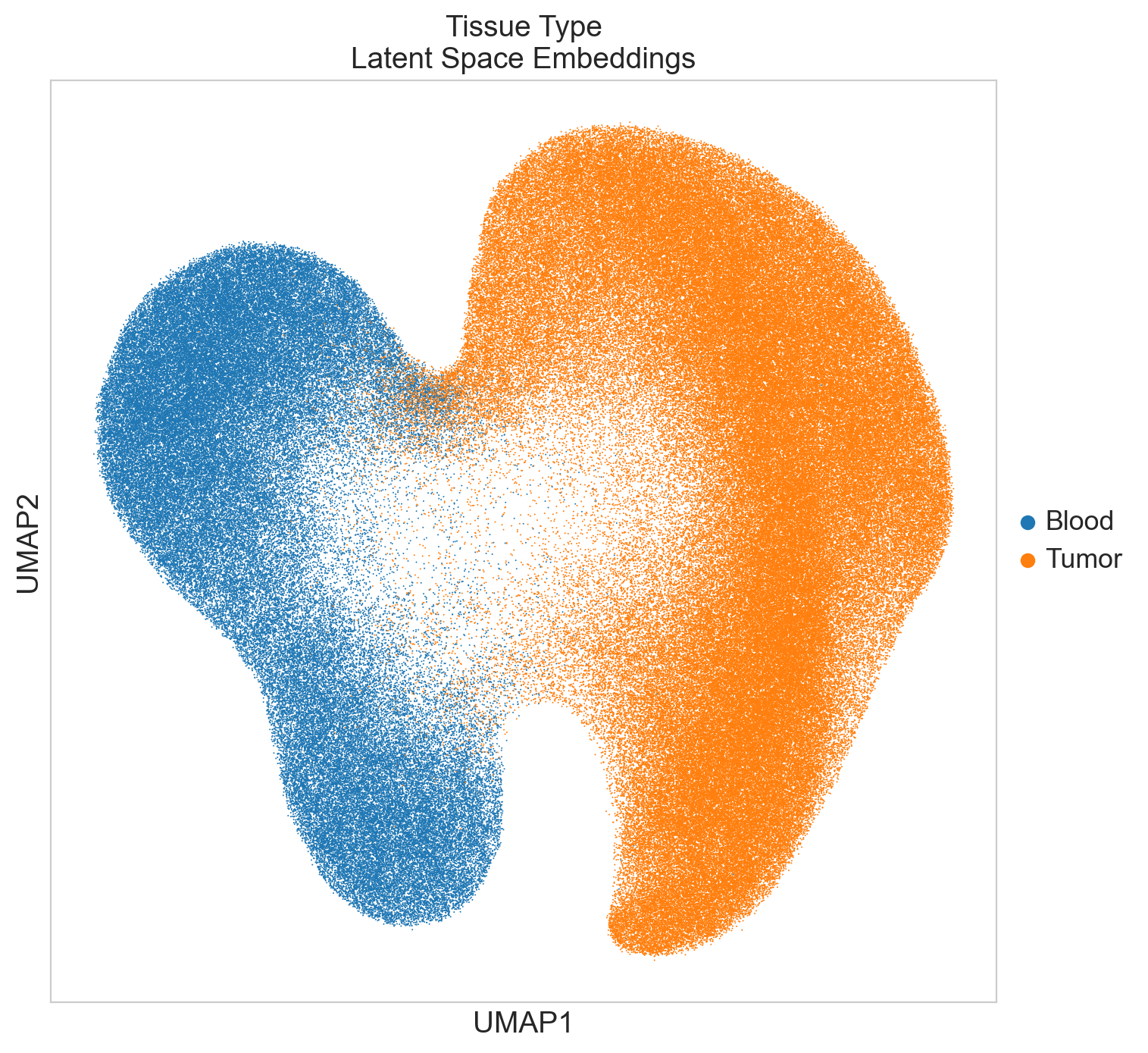

if "tissue_type" in emb_adata.obs:
    sc.pl.umap(
        emb_adata,
        color=["tissue_type"],
        title="Tissue Type\nLatent Space Embeddings",
        size=2,
    )

Save UMAP Coordinates with Metadata

# Create a DataFrame with UMAP coordinates and metadata
umap_df = pd.DataFrame(emb_adata.obsm["X_umap"], columns=["UMAP1", "UMAP2"])
if "tissue_type" in emb_adata.obs:
    umap_df["tissue_type"] = emb_adata.obs["tissue_type"]

if "imputed_labels" in emb_adata.obs:
    umap_df["expansion"] = emb_adata.obs["expansion"]

# Save to CSV
umap_df.to_csv(SAVE_PATH / "umap_coordinates_with_metadata.csv", index=False)
print(
    f"Saved UMAP coordinates with metadata to {SAVE_PATH / 'umap_coordinates_with_metadata.csv'}"
)

Saved UMAP coordinates with metadata to c:\Users\Ron\repos\scXpand\results\embeddings_visualization_v_1\umap_coordinates_with_metadata.csv
